Rapid and convenient identification
tool for bacteria.
Rapid Identification Tool
＜1min
Target - in/out time
7 min

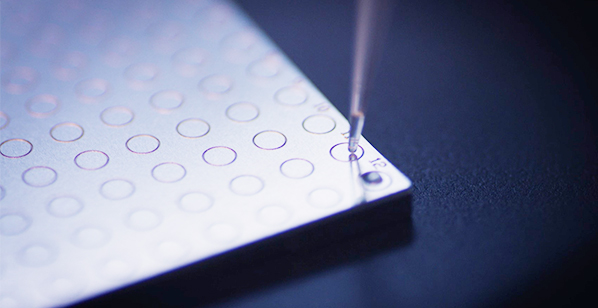

96 spots tests at one plate

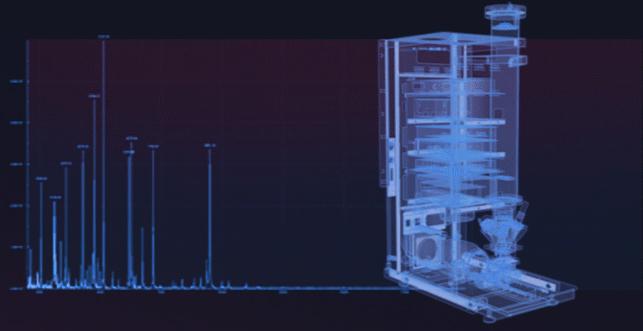

High-quality structure and hardware technology
Turbomolecular pump without oil, reduce maintenance cost. High ion propulsion technology, increase the sensitivity and resolution
Convenient Software Operaion
One screen display test spectra, identification score and result. Apart from bacteria identification report, standard colony plate picture and morphological reference picture to assist right decision.
Rich strains database
Common bacteria like filamentous fungi, yeasts, mycobacteria, etc., in the clinical database, bring accurate identification result.
Comprehensive RUO Application
Positive and negative dual ion mode, widely applied in the phosphate protein research among
antibiotic-resistant bacteria and drug sensitivity analysis
Specifications
| Work Principal | MALDI-TOF |
| Mass Range | 1500-30000 Da |
| Operation System | Windows 7 ( 64 bit) and above, support LIS |
| Laser | N2 UV laser，frequency 1-60 Hz |
| Power Supply | 100-240 V, 50/60 Hz, 300 W |
| Weight | 116.1 Kg |
| Dimension (mm) | 490(W) *800(D) *1215（H） |
